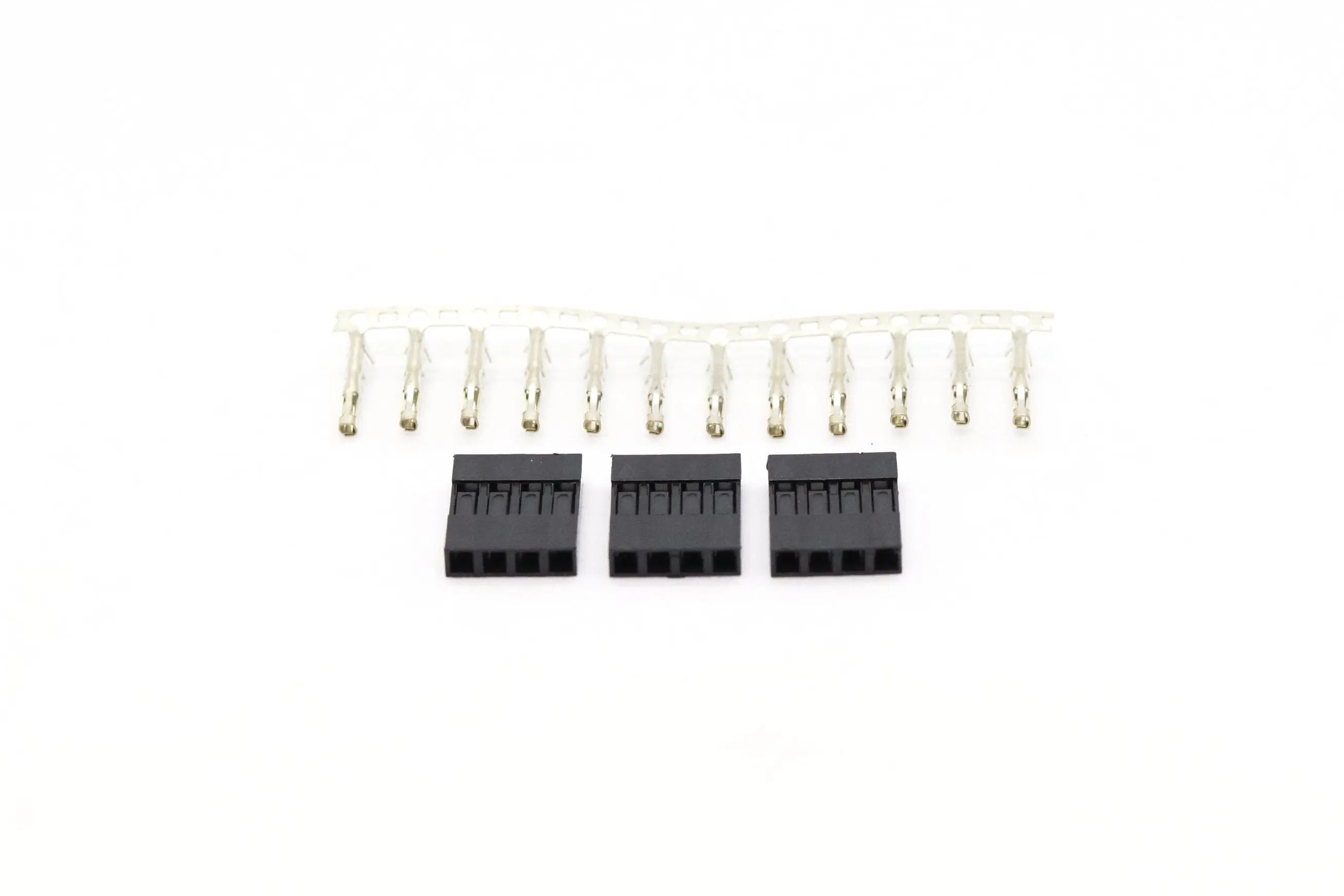

A 4-Pin Dupont Connector is a versatile component widely used in electronics and prototyping to establish reliable connections between devices, modules, and breadboards. These connectors are characterized by their black plastic housings and a standard pin spacing (pitch) of 2.54mm (0.1 inches), which ensures compatibility with standard header pins and breadboard layouts.

Key Features:

Versatile Configurations: Available in various forms, including female-to-female jumper wires, which are commonly used for connecting components on a breadboard or linking different modules.

Standardized Pitch: The 2.54mm pin spacing aligns with standard header pins, facilitating seamless integration into numerous electronic projects.

Customizable Assemblies: Users can create tailored wiring solutions by combining 4-pin housings with appropriate male or female crimp pins, allowing for precise configurations based on project requirements.

Applications:

Prototyping: Ideal for establishing temporary or semi-permanent connections in breadboard setups, enabling easy modifications during the development phase.

Microcontroller Interfaces: Commonly employed to connect peripherals and sensors to microcontroller boards such as Arduino and Raspberry Pi.

3D Printing: Utilized for linking stepper motors, end stops, and other components to controller boards within 3D printers.

Assembly Tips:

Crimping: To assemble custom cables, strip the insulation from the wire ends and crimp the appropriate pins onto each lead using a suitable crimping tool.

Insertion: Align the crimped pin with the latch facing the opening of the connector housing and insert until it locks securely into place.

Polarity and Orientation: Ensure correct alignment and polarity when connecting to prevent potential damage to components.
