Bambu Lab H2D TPU High-Flow Kit

Product image 1
Product image 2

Bambu Lab H2D TPU High-Flow Kit

Bambu Lab H2D TPU High-Flow Kit

Product Features

  • Reliable High-Speed TPU Printing — Save Up to 30% Print Time
  • Specially Tuned for Bambu TPU Filaments
  • Easy Installation

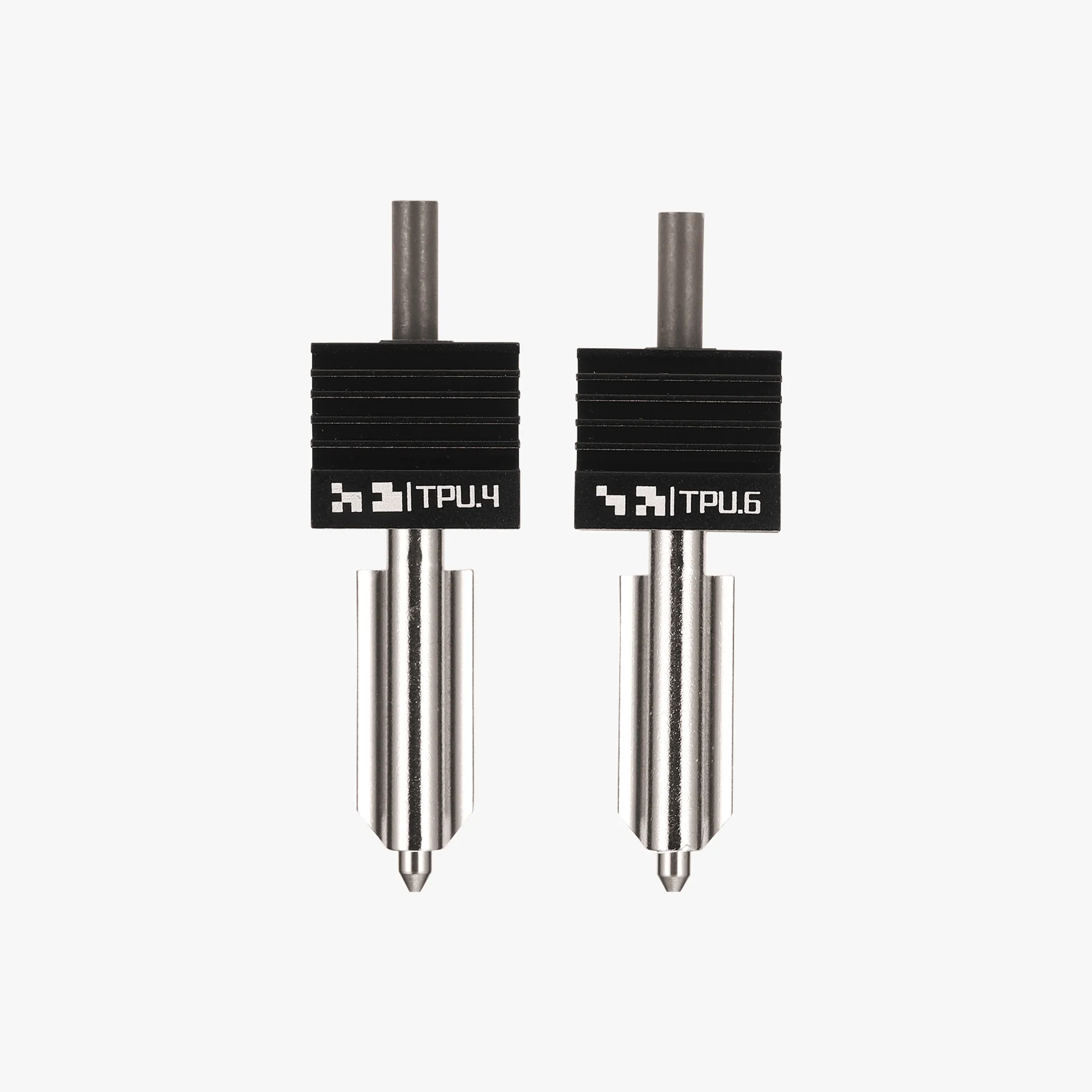

  • The H2D TPU High-Flow Kit includes 0.4 mm and 0.6 mm TPU High-Flow hotends and the required components for installation.
Important Notice Before Purchase

1. Limitations: After installing the TPU hotend, the filament cutter installation is not supported, so the filament cutter function cannot be used, and the right nozzle does not support automatic filament changing and automatic filament feeding and retracting.

2. Only flexible filaments are allowed: The TPU hotend has a special inner coating, printing hard filaments is prohibited (such as PLA, PETG, TPU for AMS), otherwise it will cause the coat to wear and fail.

3. Position Limitation: The TPU hotend can only be installed on the right nozzle. If it is installed on the left nozzle, it will cause the nozzle lifting mechanism to malfunction.

4. Installation Guide: Please read the official H2D TPU High-Flow Kit installation guide on Bambu Lab Wiki before purchasing.

Reliable High-Speed TPU Printing

The specially designed hotend reduces extrusion resistance and extends the melting zone, enabling faster and more stable TPU printing. When printing 90A TPU, it delivers up to 100% higher flow rate and cuts print time by around 30% for typical applications such as footwear.

vision encoder hf hotend  hf hotend   hf hotend

Specially Tuned for Bambu TPU Filaments

Print parameters are precisely fine-tuned for all Bambu TPU filaments when used with the TPU High-Flow Kit. No manual tweaking required—sticky TPU materials to print smoothly right out of the box.

Easy Installation

Installation takes just a few minutes. Simply pop off the front cover, remove the filament cutter, and slide in the High-Flow hotend—ready to print in no time.

Comparison of Different Nozzle Sizes

H2D Standard Flow Hotend H2D TPU High-Flow Hotend
TPU 0.4 mm Nozzle 0.6 mm Nozzle 0.4 mm Nozzle 0.6 mm Nozzle
85A
Not Compatible
2.2 mm³/s
 2.5 mm³/s 4.8 mm³/s
90A 2.8 mm³/s 2.8 mm³/s 5.6 mm³/s 5.6 mm³/s
95A HF 12 mm³/s 12 mm³/s 16 mm³/s 16 mm³/s

Note: Parameter optimization and speed enhancements currently apply only to Bambu TPU 85A, Bambu TPU 90A, and Bambu TPU 95A HF.

Filament Compatibility

Bambu TPU 85A

Bambu TPU 90A

Bambu TPU 95A

Bambu TPU 95A HF

  Generic TPU

Installation Guide

Please refer to the installation guide for the H2D TPU High-Flow Kit available on Bambu Lab Wiki.

For TPU printing recommendations, please also refer to the TPU 85A & 90A Printing Guide for the H2 Series on Bambu Lab Wiki.

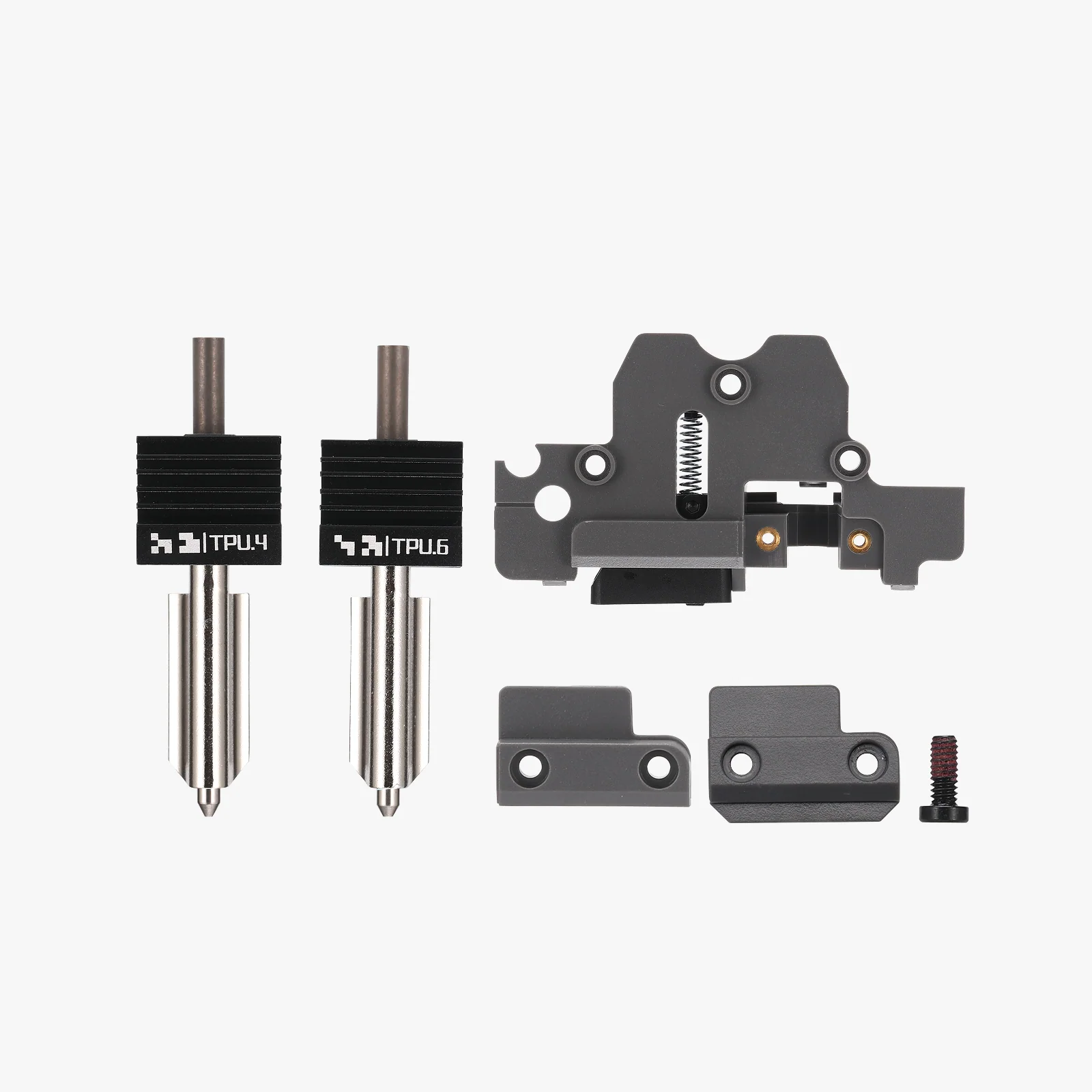

In the Box

Item Quantity
0.4 mm High-Flow TPU Hotend
 1
0.6 mm High-Flow TPU Hotend
 1
TPU High-Flow Front Cover Guide
 1
TPU Hotend Cover
 1
Hotend Cover
 1
M2×5 Screws for Hotend Cover
 2
$14.91

Original: $42.60

-65%
Bambu Lab H2D TPU High-Flow Kit—

$42.60

$14.91
